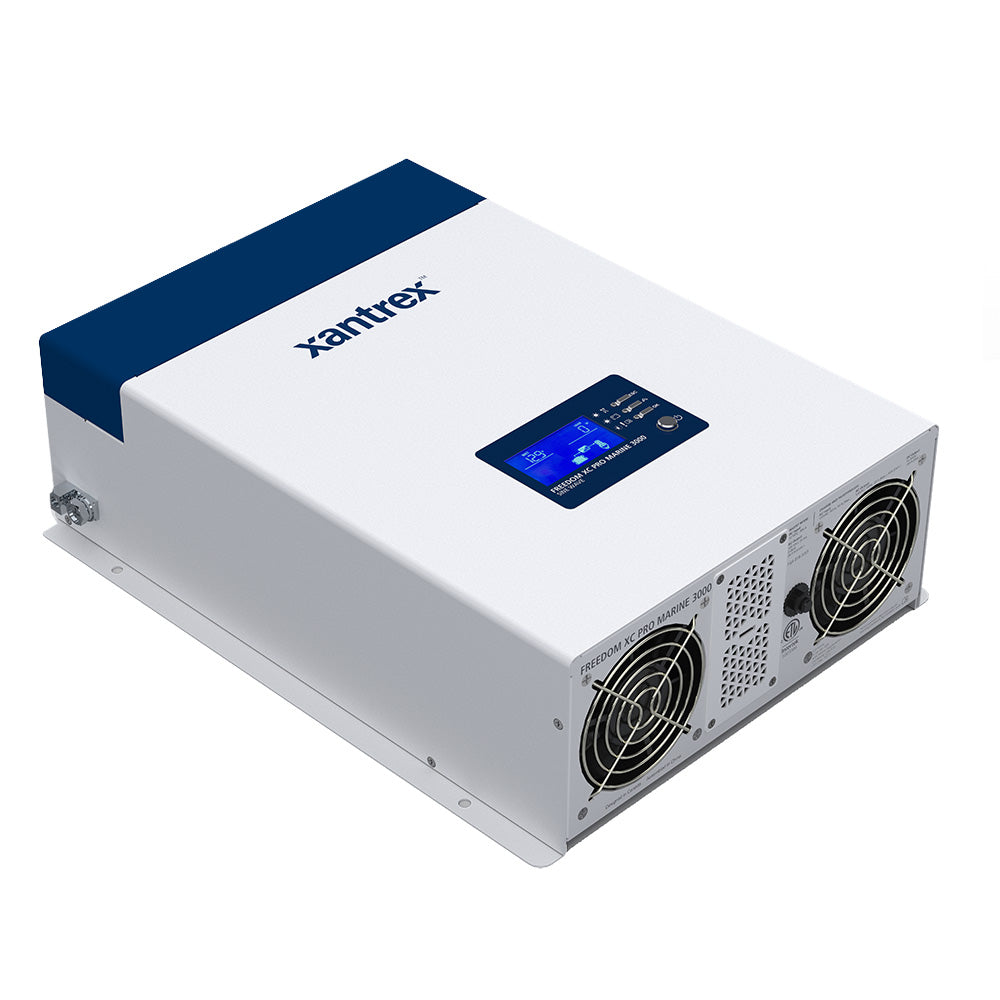

Xantrex Freedom XC Pro 3000 Inverter/Charger - 3000W - 150A - 120V - 12V

Xantrex Freedom XC Pro 3000 Inverter/Charger — 3000W / 150A / 12V

The Freedom XC Pro 3000 is a true sine wave inverter/charger built for mobile applications that demand full output in any climate. At just 21 lbs, it packs 3000W of continuous inverter power, a 150A lithium-compatible multi-stage charger, and a built-in 50A AC transfer relay into a compact footprint. RV-C and J1939 protocol support make it one of the most integration-friendly units on the market, and Bluetooth monitoring is available via the optional remote panel (#808-0817-02).

Inverter Features

True Sine Wave Output — Clean power for sensitive electronics, motor loads, and standard appliances.

Extended Surge Rating — Surges to 2x continuous power for 5 seconds to reliably start compressor loads such as A/C units and refrigerators.

Full Output in All Climates — Rated for continuous operation from −4°F to 104°F (−20°C to 40°C) with no derating.

Wide 10–18V DC Input Range — Compatible with high-voltage alternators found on modern vehicle chassis.

Ignition Control — Turn the inverter on/off via a 12V DC signal; automatically shuts off with the ignition to prevent battery drain.

Programmable AC Under-Voltage Shutdown — Configurable from 85–110V AC; ideal for weak shore power or generator input.

Built-In 50A AC Transfer Relay — Automatically senses incoming AC power and transfers load from inverter to source.

RV-C & J1939 Protocol Support — Advanced system integration for RV and commercial vehicle networks.

Optional Bluetooth Remote Panel — Configure and monitor via app (Part #808-0817-02, sold separately).

Charger Features

150A Power Factor Corrected Multi-Stage Charger — Draws less shore power while charging, freeing up capacity for other loads and reducing the chance of tripping breakers.

Lithium-Ion Compatible — Easily configurable for any lithium-ion battery chemistry.

Programmable 3-Stage Temperature Compensated Charging — Optimized for virtually any battery type up to 18V.

Dead Battery Charging — Can charge batteries down to 0V DC.

Battery Equalization — Extends flooded battery life.

Power Share — Prioritizes AC loads by reducing charge current to keep total input current below breaker rating.

Specifications

Inverter Continuous Output: 3,000W

Inverter Output Voltage: 120V AC

Inverter Input Voltage: 12V DC

Input Voltage Range: 10–18V DC

Charger Output: 150A @ 12V

AC Transfer Relay: 50A (built-in)

Operating Temperature: −4°F to 104°F (−20°C to 40°C)

Weight: 21.25 lbs

Country of Origin: USA

SKU: XAN-818-3010

UPC: 715535905774

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
