Xantrex Freedom XC 2000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 2000W/80A

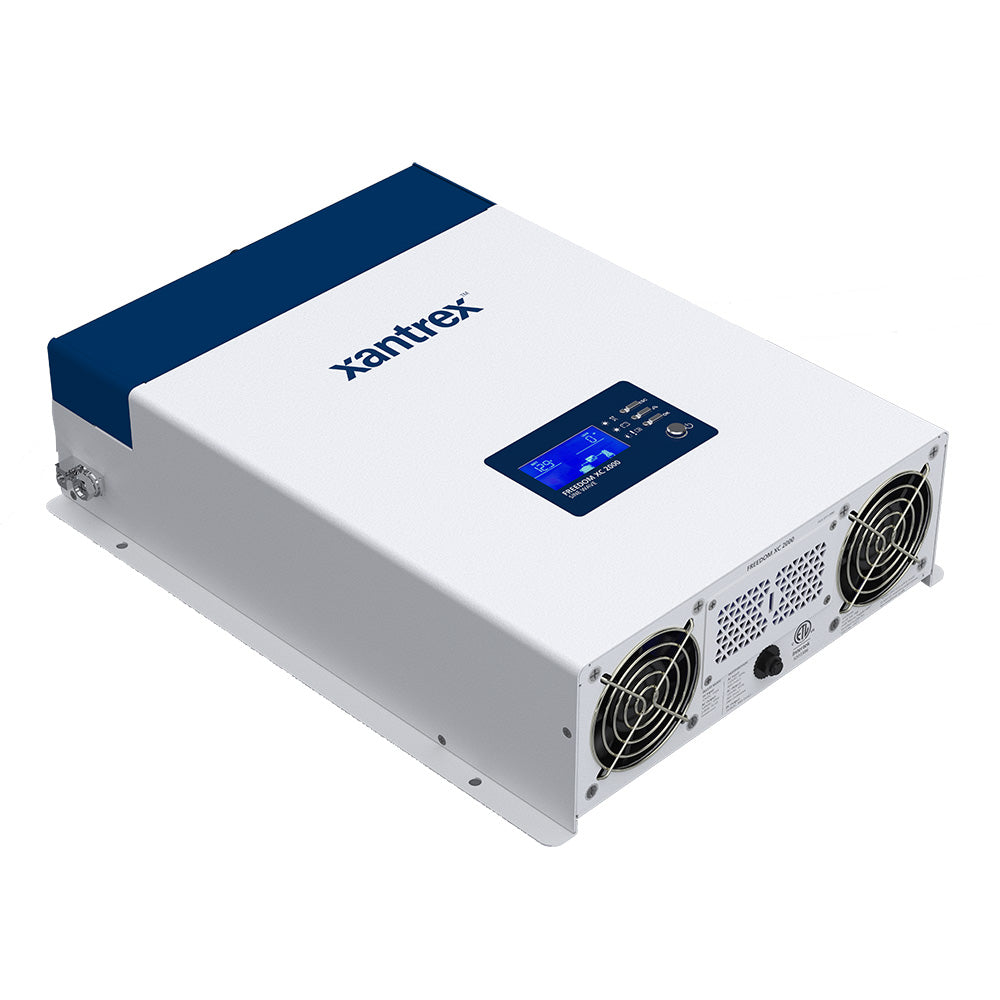

Xantrex Freedom XC 2000 Inverter/Charger — 2000W / 80A / 12V

The Freedom XC 2000 is a true sine wave inverter/charger built for recreational and commercial applications that need reliable AC power in a compact, lightweight package. At 19.4 lbs, it delivers 2000W continuous output (4000W surge) and an 80A multi-stage charger, with a built-in 30A AC transfer relay and quick-connect terminals that simplify installation. Full output is maintained across all climate temperatures from −4°F to 104°F.

Inverter Features

True Sine Wave Output — Clean power for sensitive electronics, motor loads, and standard appliances.

Extended Surge Rating — Surges to 2x continuous power (4000W) for 2 seconds to start difficult loads including fridges and microwaves.

Full Output in All Climates — Rated for continuous operation from −4°F to 104°F with no derating.

Wide 10–18V DC Input Range — Compatible with high-voltage alternators on modern vehicle chassis.

Ignition Control — Turn the inverter on/off via a 12V DC signal; automatically shuts off with the ignition to prevent battery drain.

Programmable AC Under-Voltage Shutdown — Configurable from 85–110V AC; ideal for weak shore power or generator input.

Built-In 30A AC Transfer Relay — Automatically senses incoming AC power and transfers load from inverter to shore/generator, switching to charge mode simultaneously.

Charger Features

80A Power Factor Corrected Multi-Stage Charger — Draws less shore power while charging, freeing up capacity for other loads and reducing the chance of tripping breakers.

Programmable 3-Stage Temperature Compensated Charging — Optimized for virtually any battery type up to 18V.

Dead Battery Charging — Can charge batteries down to 0V DC.

Battery Equalization — Extends flooded battery life.

Power Share — Prioritizes AC loads by reducing charge current to keep total input current below breaker rating.

Specifications

Waveform: True Sine Wave

Inverter Continuous Output: 2,000W

Inverter Surge Rating: 4,000W (2 sec)

Inverter Output Voltage: 120V AC

Inverter Input Voltage: 12V DC

Input Voltage Range: 10–18V DC

Charger Output: 80A @ 12V

AC Transfer Relay: 30A (built-in)

DC Connection: Hardwire

AC Connection: Hardwire

Operating Temperature: −4°F to 104°F

Dimensions: 10"H x 16"W x 20"L

Weight: 19.4 lbs

SKU: XAN-817-2080

UPC: 715535901349

Videos

Product Overview

Documentation

Owner's Manual (PDF)  |  Brochure (PDF)
