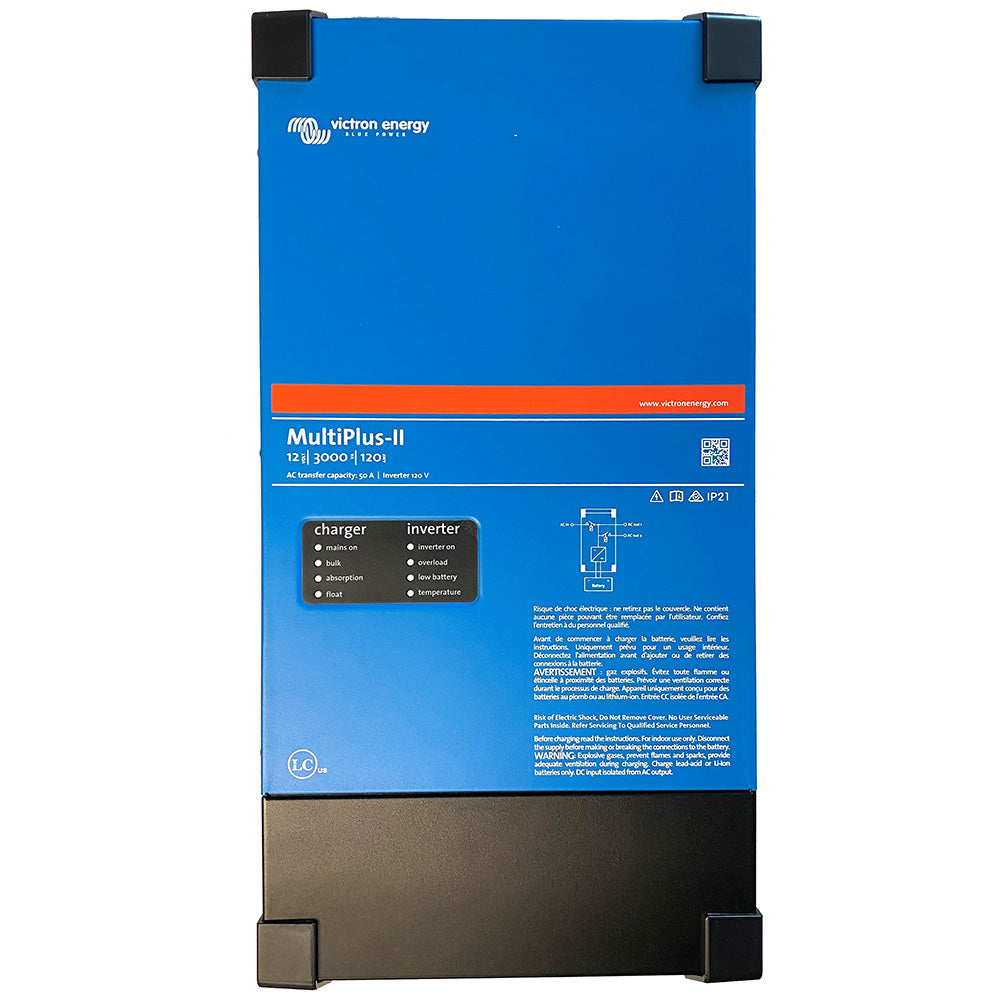

Victron MultiPlus-II 12/3000 - 120-50 - 120V - (UL458)

Victron MultiPlus-II 12/3000 — 12V / 3000VA / 120V

The MultiPlus-II 12/3000 combines the best of Victron's MultiPlus and MultiGrid into a single unit. It's a pure sine wave inverter/charger with PowerAssist, built-in anti-islanding, and VE.Bus integration for advanced system monitoring and control. As the core component of a Victron ESS (Energy Storage System), it pairs seamlessly with MPPT solar chargers and grid-tie PV inverters. An external current transformer option enables PowerControl and PowerAssist with external current sensing up to 32A. This 12V model features a 120A charger output — ideal for large 12V battery banks. Certified to UL 458.

PowerControl & PowerAssist

The MultiPlus-II prevents overloading limited AC sources such as generators or shore power. It first reduces battery charging automatically when an overload is imminent; if that's insufficient, it boosts the output by drawing from the battery bank to supplement the AC source.

ESS: Energy Storage Systems

The MultiPlus-II is the key component in a Victron ESS system, with flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters for self-consumption optimization and grid backup.

UPS Function — <20ms Transfer

In the event of grid failure or loss of shore/generator power, the inverter activates in under 20 milliseconds — fast enough that computers and sensitive electronics continue operating without disruption.

Remote Monitoring & Control

When paired with a GX device (e.g. Cerbo GX), monitor and control the system locally via LAN or remotely via the free VRM app and portal. Accessible from any phone, tablet, or computer.

Inverter Specifications

DC Input Voltage Range: 9.5–17V

Output Voltage: 120V AC ± 2%

Output Frequency: 60 Hz ± 0.1%

Continuous Output @ 25°C: 3,000 VA / 2,400W

Continuous Output @ 40°C: 2,200W

Continuous Output @ 65°C: 1,700W

Peak Power: 5,500W

Maximum Efficiency: 93%

Zero Load Power: 13W (standard) / 9W (AES mode) / 3W (Search mode)

Charger Specifications

AC Input Voltage Range: 90–140V AC

AC Input Frequency: 45–65 Hz

Maximum Charge Current: 120A

Absorption Voltage: 14.4V

Float Voltage: 13.8V

Storage Voltage: 13.2V

Battery Temperature Sensor: Included

General Specifications

Transfer Switch: 50A

Maximum AC Input Current: 50A

Auxiliary Output: 32A

External AC Current Sensor (optional): 100A

Programmable Relay: Yes

VE.Bus Port: Parallel, split-phase, and three-phase operation; remote monitoring and system integration

General Purpose Com. Ports: 2x

Remote On/Off: Yes

Operating Temperature: −40°C to +65°C (−40°F to 150°F), fan-assisted cooling

Humidity: Max 95% (non-condensing)

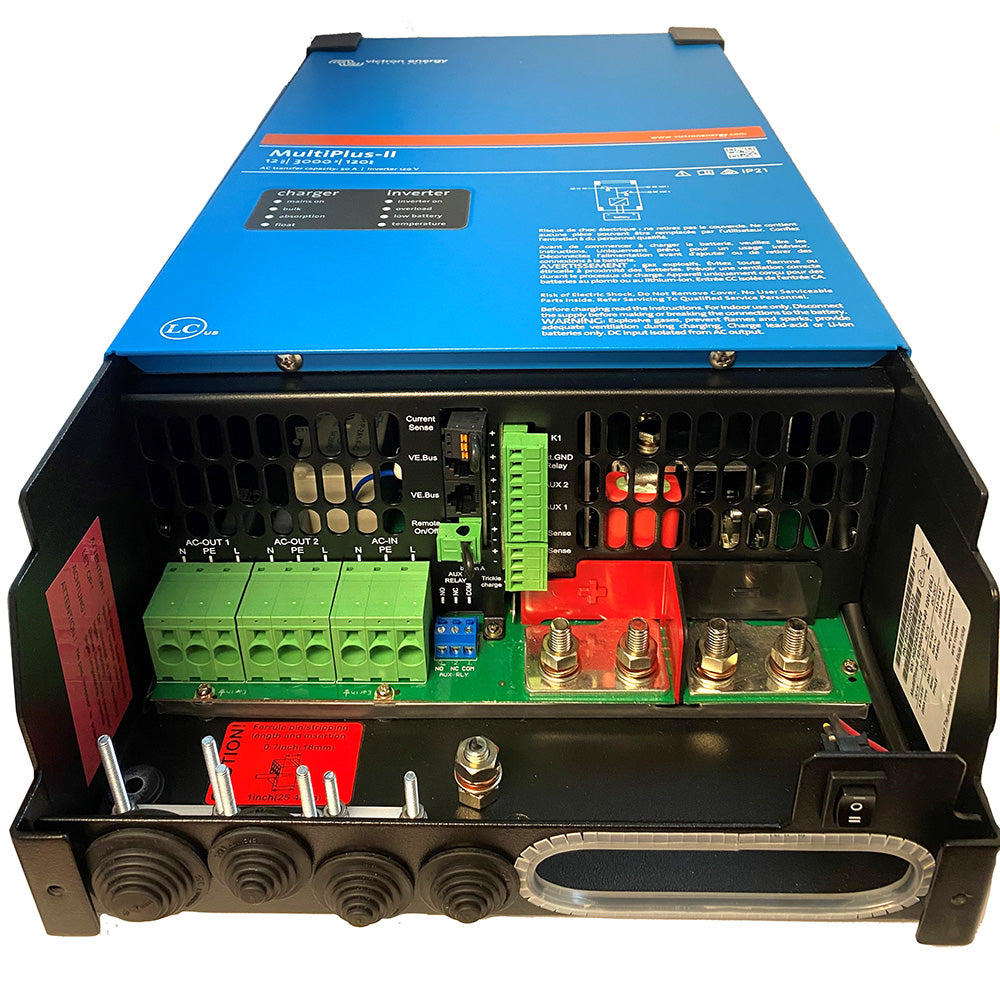

Enclosure

Material: Steel, blue RAL 5012

Protection Category: IP22

Battery Connection: M8 bolts

AC Connection: Screw terminals 13mm² (6 AWG)

Dimensions (H×W×D): 578 × 277 × 148mm

Weight: 9 kg (52.22 lbs)

Country of Origin: India

SKU: VIC-PMP122305122

UPC: 8719076059196

Certifications

Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL 458
EMC: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Note: For a short period of time this product was called MultiGrid-II.
