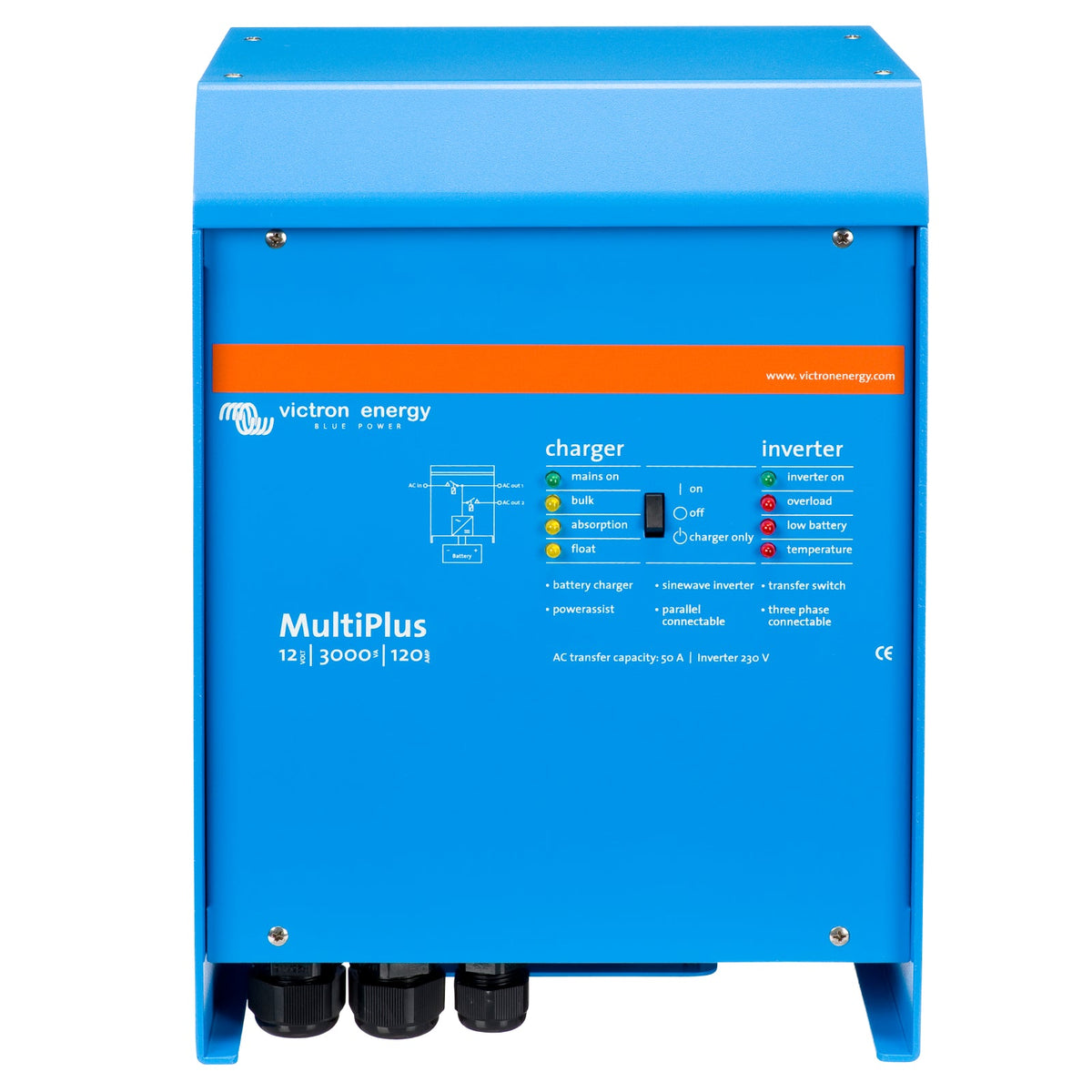

Victron MultiPlus 12/3000/120-50 230V Inverter/Charger

Victron MultiPlus 12/3000/120-50 230V Inverter/Charger

The Victron MultiPlus is a combined pure sine wave inverter and adaptive battery charger in a single compact unit. With 3000W of continuous inverter output, a 120A multi-stage charger, and PowerAssist technology, it handles everything from whole-system backup power to off-grid solar installations. VE.Bus connectivity enables advanced system integration, remote monitoring, and multi-unit parallel or split-phase stacking for larger installations.

Key Features

Pure Sine Wave Inverter — Clean, stable AC output suitable for sensitive electronics, motors, and all standard appliances.

Adaptive Charging — Victron's adaptive battery management optimizes the charge cycle based on battery usage history, extending battery life and ensuring a full charge efficiently.

PowerAssist Technology — Supplements shore power or generator output when AC loads exceed the source capacity, drawing the balance from the battery bank. Prevents generator or shore power circuit overload.

VE.Bus Integration — Full system integration via VE.Bus for remote monitoring, configuration, and control. Compatible with Victron Color Control GX, Cerbo GX, and other system monitors.

Parallel & Split-Phase Stacking — Multiple units can be connected in parallel to increase output capacity, or in split-phase configuration for 120/240V systems.

Built-In Transfer Switch — Automatically switches between inverter and AC input with a fast transfer time to minimize disruption to connected loads.

Wide Input Voltage Tolerance — Accepts a wide AC input range before switching to inverter mode, reducing unnecessary battery cycling.

Specifications

Inverter Continuous Output: 3,000W

Inverter Output Voltage: 230V AC

Inverter Input Voltage: 12V DC

Charger Output: 120A @ 12V

Charger Stages: Adaptive multi-stage

Weight: 47.84 lbs

SKU: PMP123021010

UPC: 8719076023951

Documentation

Split-Phase System Wiring Example (PDF)
