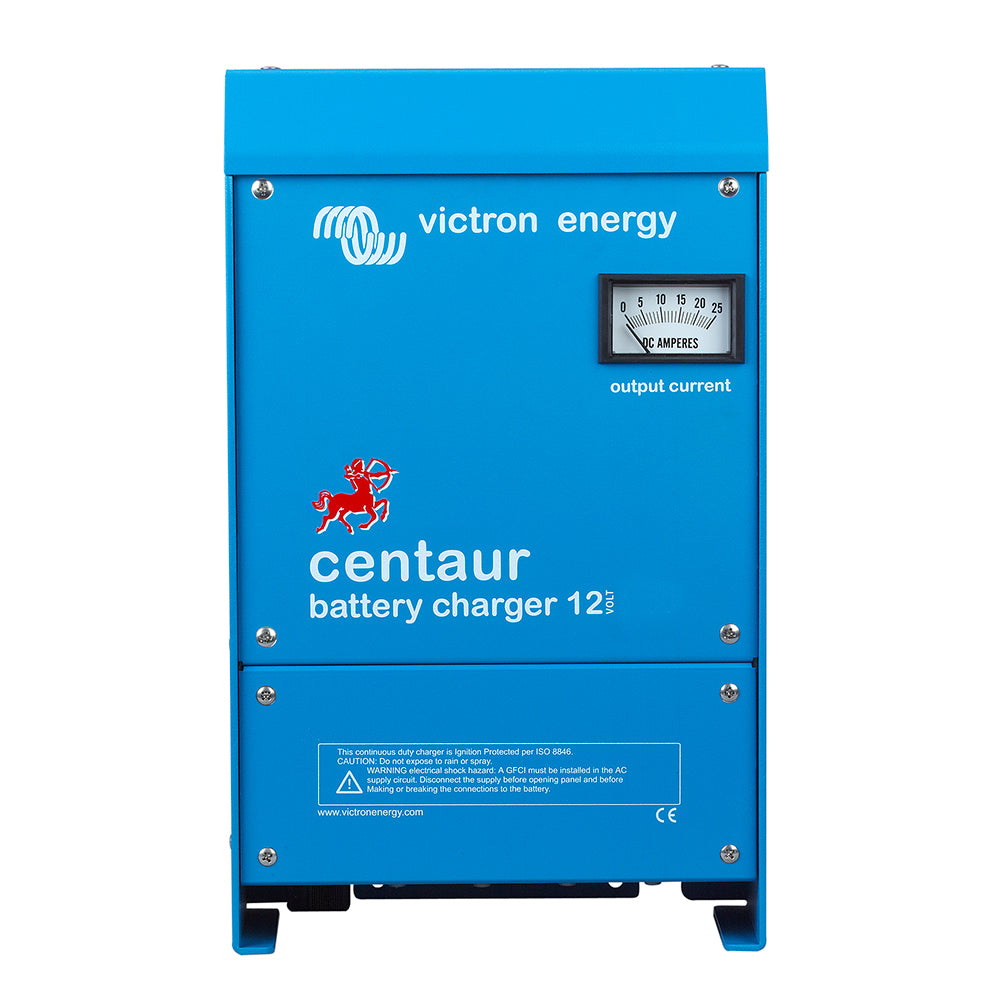

Victron Centaur Charger - 12 VDC - 100AMP - 3-Bank - 120-240 VAC

Victron Centaur Charger — 12V / 100A / 3-Bank

The Victron Centaur is a professional-grade 3-bank battery charger built for demanding environments. Its aluminum epoxy powder-coated enclosure, stainless steel fixings, and acrylic-coated circuit boards are engineered to handle heat, humidity, and salt air. With a universal 90–265V AC input range and the ability to accept DC supply as well, it works anywhere in the world without adjustment — and each of its three isolated outputs can independently deliver the full rated 100A.

Key Features

Built for Harsh Environments — Aluminum epoxy powder-coated case, drip shield, stainless steel fixings, and acrylic-coated PCBs for maximum corrosion resistance.

Universal Input Voltage — Accepts 90–265V AC (50 or 60 Hz) and 90–400V DC with no adjustment needed. True worldwide compatibility.

3 Independent Isolated Outputs — Each output can supply the full 100A rated current, allowing simultaneous charging of 3 separate battery banks.

3-Stage Charging with Temperature Compensation — Bulk, absorption (4-hour timed), and float stages. Internal sensor compensates charge voltage at −2mV/°C per cell for accurate charging across temperatures.

Selectable Battery Profiles — DIP switch selects optimum charge and float voltages for Flooded Lead-Acid, Gel, or AGM batteries.

Automatic Thermal Management — Output current automatically reduces under extreme heat to keep components within safe operating limits.

Specifications

Output Voltage: 12V DC

Output Current: 100A

Charging Banks: 3 (independent isolated outputs)

Input Voltage: 120/240V AC (90–265V range) or 90–400V DC

Dimensions: 9"H x 14"W x 25"L

Weight: 24.25 lbs

Country of Origin: Malaysia

SKU: VIC-CCH012100000

UPC: 8719076021537

Documentation

Quick Guide (PDF)  |  Owner's Manual (PDF)  |  Brochure (PDF)  |  Warranty Info (PDF)

Note: Please contact your dealer for any returns, repairs, or support issues related to this product.
