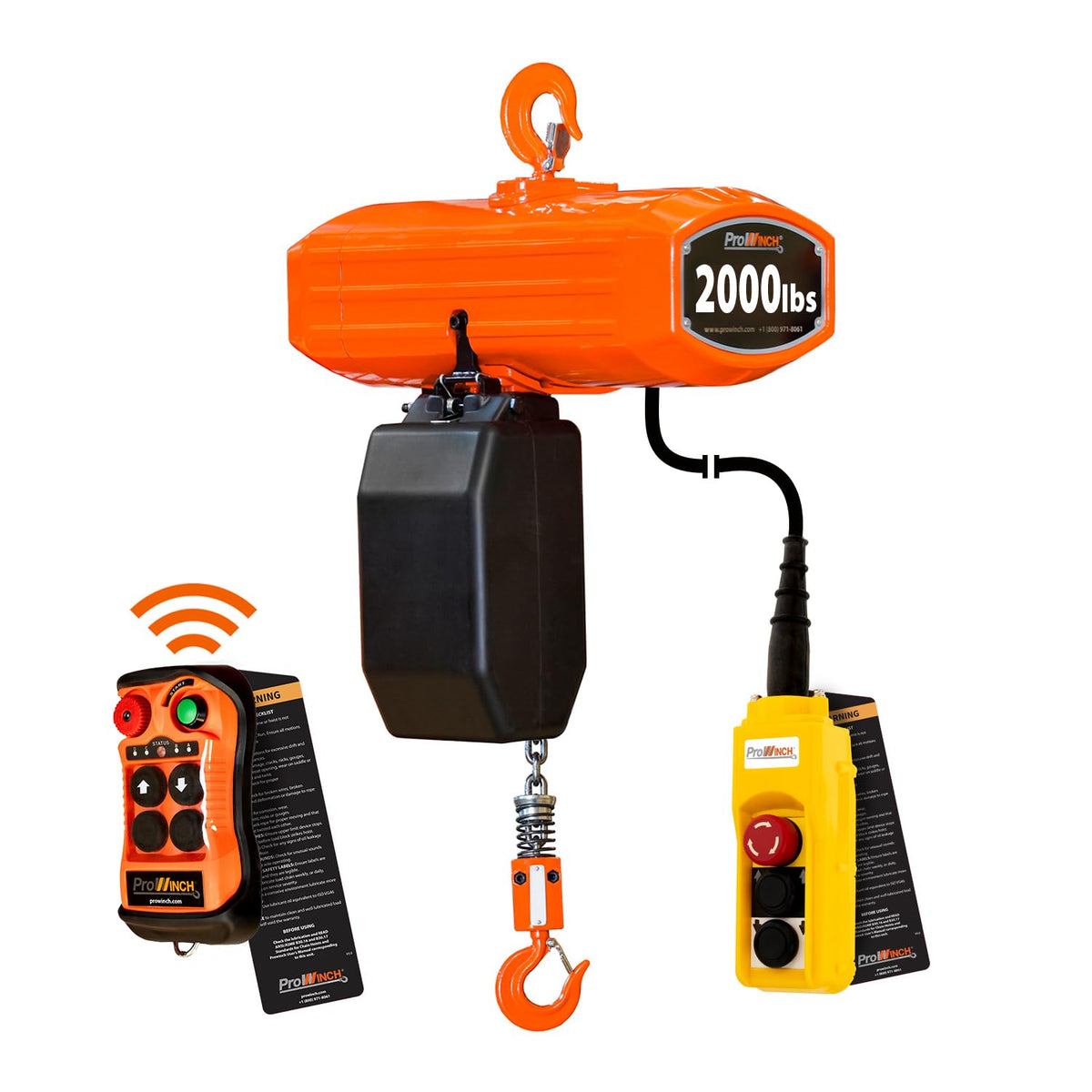

Portable Electric Hoist - 2000 Lbs Electric Chain Hoist with Wireless Remote Control, 20 Ft Lifting Height, Single-Phase Dual Voltage 110~120V / 220~240V, G100 Chain, Overhead Crane, 1 Speed
Portable Electric Hoist - 2000 Lbs Electric Chain Hoist with Wireless Remote Control, 20 Ft Lifting Height, Single-Phase Dual Voltage 110~120V / 220~240V, G100 Chain, Overhead Crane, 1 Speed
Couldn't load pickup availability
Share
Product description
Electric Chain Hoist Description
The Prowinch 1 ton Electric Chain Hoist allows you to easily lift loads. The powerful motor and single phase electrical connection are perfect for use in a wide variety of situations and environments. The integrated wireless control offers added convenience with the ability to operate the hoist from up to 100 feet away.

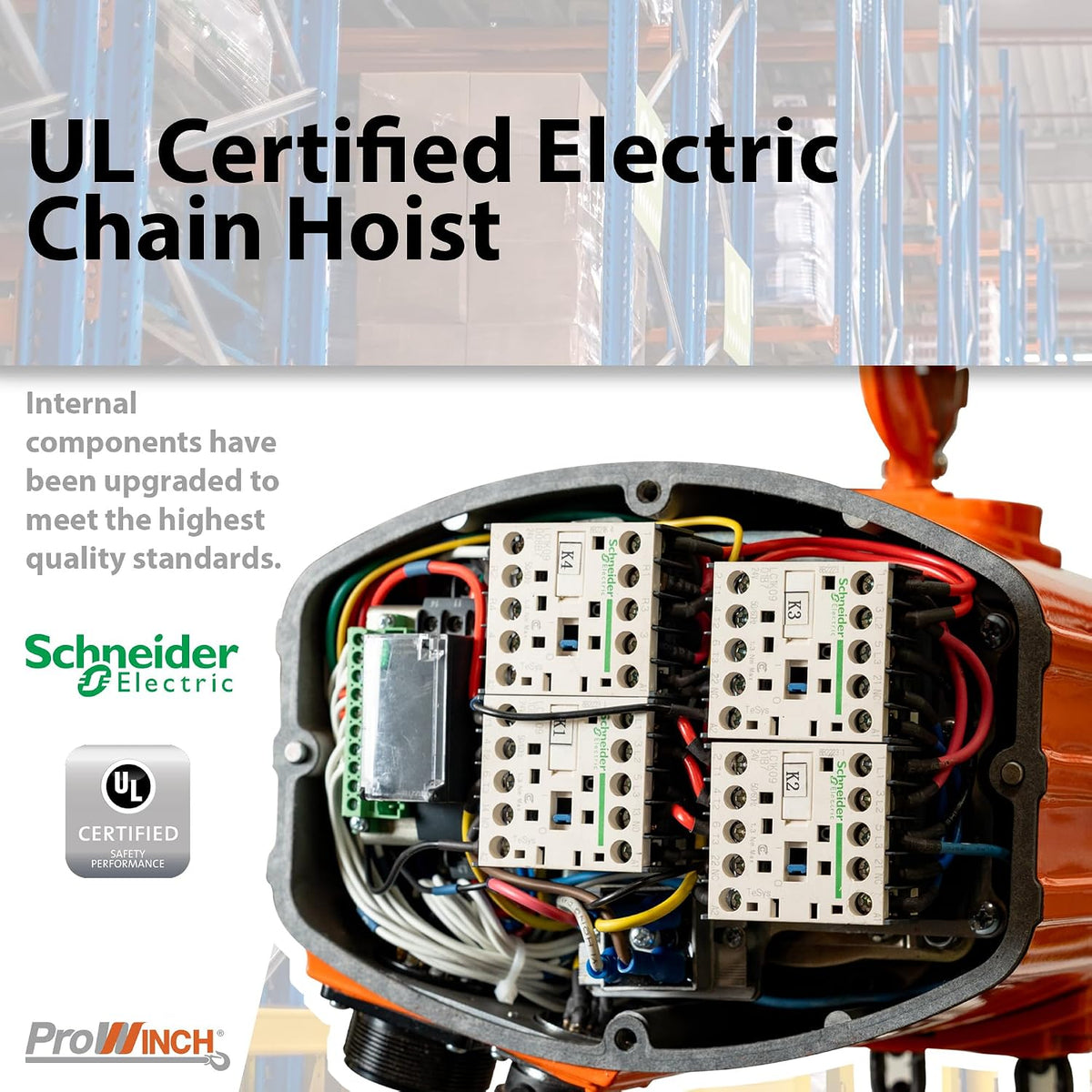

UL Certified Electric Chain Hoist
All of our Electric Chain Hoists are created with the goal of offering the best duty performance. Key components such as lifespan factors are constantly tested and improved in order to offer the best product in the market.
Key Components
All internal components have been upgraded to meet the highest quality standards. Key electronic components are produced by American or German brands, and we use American-made lubricants to ensure the lifespan of gears and reducers. Final assembly and all tests are performed in the US before shipping to ensure that every unit meets the corresponding standard.
Duty Classification
Duty classification is a key factor when choosing the right unit. These H3 hoists are suitable for general machine shop fabricating, assembly, storage, and warehousing. For uniformly distributed work periods, the hoists have 25% max. operational time per hour and can handle up to 150 starts per hour. When being used for infrequent work periods, the hoist can be operated for 30 minutes from a cold start with up to 200 starts per hour. Operational time ratings are calculated at a 65% load factor, as per ASME HST-1-2012.
Control System
This Electric Chain Hoist comes with a pendant control with up, down, and emergency stop. The length of the pendant control is 4 feet less than the lifting height, which allows it to be easily operated from ground-level.
Braking System
The electromagnetic brake system is tested at 125% of the hoist capacity and is designed to automatically engage immediately upon any loss of power.
Prowinch 2000 lb Electric Chain Hoist 115/230V 20 ft G100 Chain UL Wireless
Key features
- High quality Hoist with UL Certification, Includes both a wired and wireless remote
- Overload Protection and Heavy Duty, Durable G100 Chain

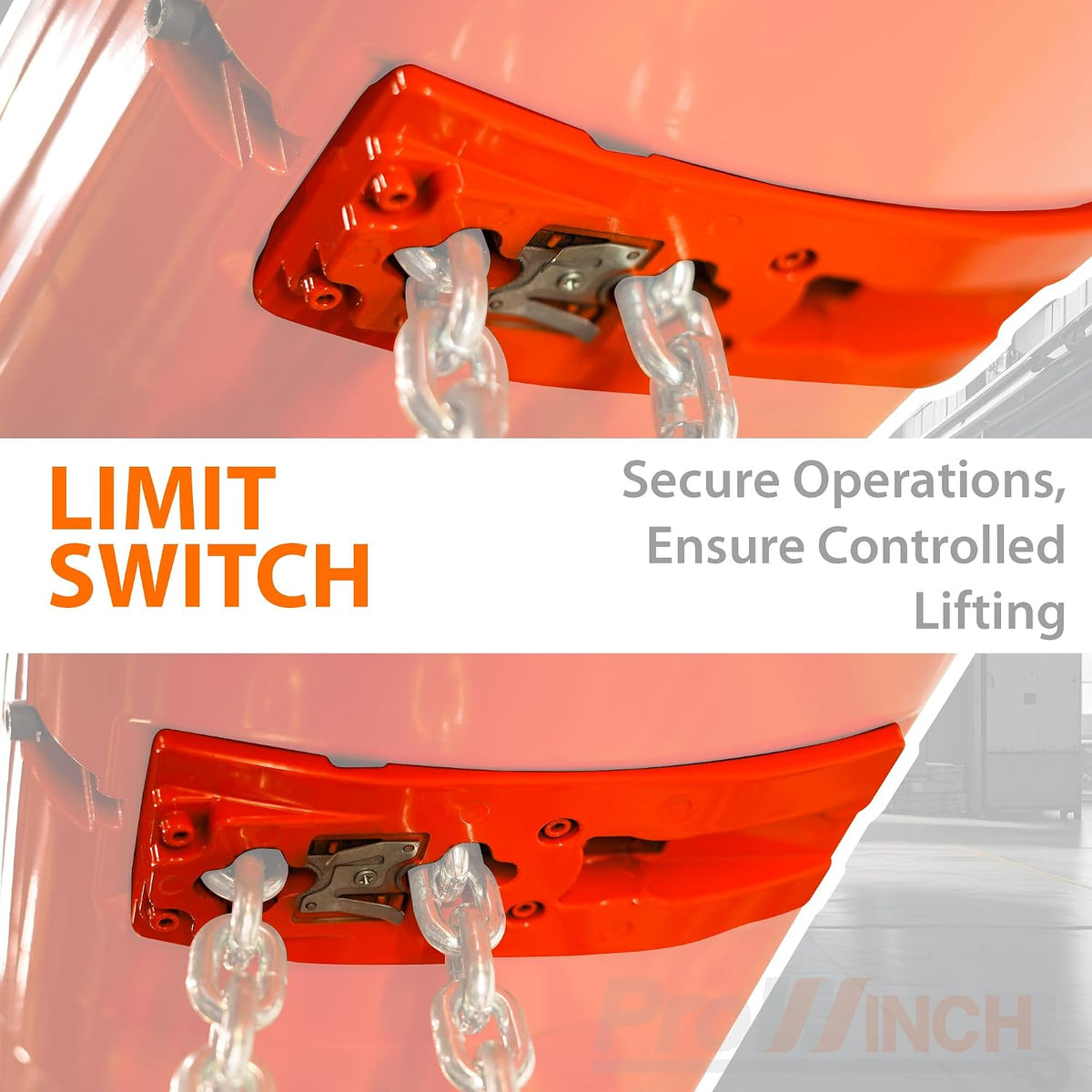

- Key safety features such as all-way limit switches, emergency stop, and automatic brake system
- Meets US and EU Standards ASME HST-1, ASME B30.16, EN14492-2, EN60204-32
Technical Specifications
| Rated Load Capacity | 2000 lbs / 1000kg |
| Speed /min | 16 ft / 5 m |
| Voltage | 110~120/220~240V 50/60Hz 1 Phase |
| FCC ID | WTX20X04015023E |
| Control | Pendant Control and Industrial Wireless Control |
| Emergency Stop | Yes |
| Chain Size | 8x24 mm |
| Chain Length | 20 ft / 6 m |
| Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Standards | UL 1340, ASME HST-1 , ASME B30.16 , B30.17 , EN14492-2 , EN60204-32 |
| Motor/Engine Power | 1.3 kW |
| Lifting Height | 20 ft / 6 m |
| Number of Speeds | 1 Speed |
| IEC Motor Protection | IP55 |
| Duty Class | H3/M4/1Am/Class C |
| Control Voltage | 24V |
| Chain Type | G100 |
| Chain Falls | 1 |
| Humidity | <85% |
| Noise Level | 81 dB |
| UL File | MSXT.E528915 - Hoists |
| Customer Reviews | — | 3.7 out of 5 stars 2 | 5.0 out of 5 stars 2 | 4.8 out of 5 stars 6 | 4.6 out of 5 stars 6 |
|---|---|---|---|---|---|
| Price | — no data | $1,612.01$1,612.01 | $1,658.69$1,658.69 | $2,833.36$2,833.36 | $3,381.52$3,381.52 |
| Capacity (lb) | 300 | 500 | 1000 | 2000 | 4000 |
| Speed (ft/min) | 16 | 16 | 16 | 16 | 8 |
| Lifting Height | 20 | 20 | 20 | 20 | 20 |
| Chain Length | 20 | 40 | 20 | 20 | 40 |
| Chain Falls | 1 | 2 | 1 | 1 | 2 |
| Wireless Controls | no data | no data | ✓ | ✓ | ✓ |
About Prowinch
Prowinch was established in 1995 and currently has locations in the United States, Chile, Colombia, Mexico, Costa Rica and El Salvador. We sell winches, electric chain hoists, cranes and related equipment and accessories. Our products are used in many different industries, such as fabrication, assembly, logging and warehousing. We offer hoists and winches that are suitable for hobbies or heavy-duty industrial applications. Our team will work with you to find the perfect unit for any application, and we even offer custom-made solutions.

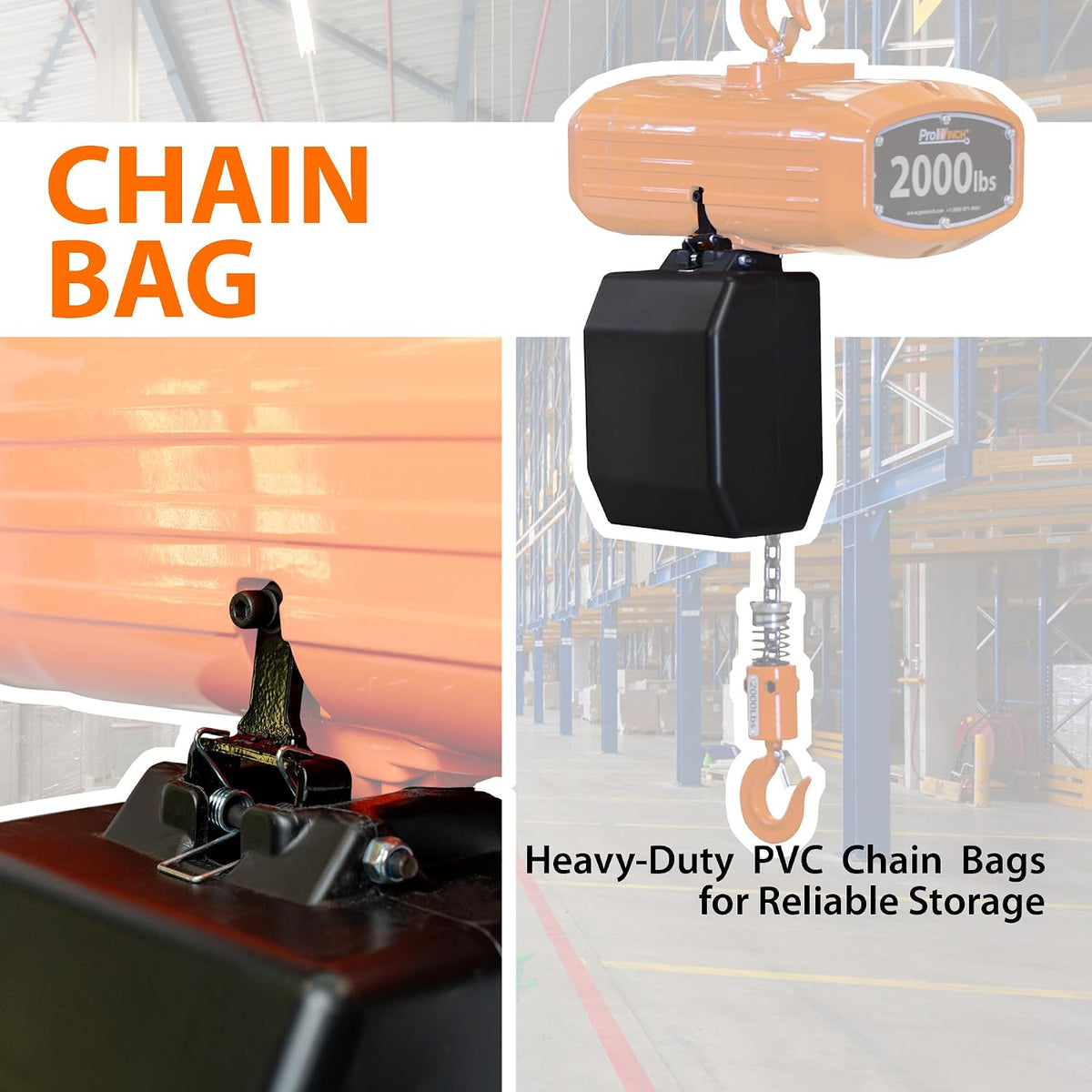

- Lifting Capacity & Heavy Duty Chain (2000 lbs): This Electric Chain Hoist is built with a 20 ft (6m) G100 heavy-duty chain, lifting up to 2000 lbs (907 kg). A heavy-duty PVC bag is included to store the chain neatly as the hook rises.
- Reliable Motor Performance: This electric hoist features a brushless single-phase motor with dual voltage (110~120V / 220~240V), designed for demanding applications with a duty class of H3. It includes F-grade insulation, IP55 protection, and UL certification for safe and reliable operation.
- Safe Design: This portable chain hoist operates at 1 speed and is equipped with a reliable DC electromagnetic motor brake for enhanced safety. It features an emergency stop function, ensuring secure and controlled lifting operations.

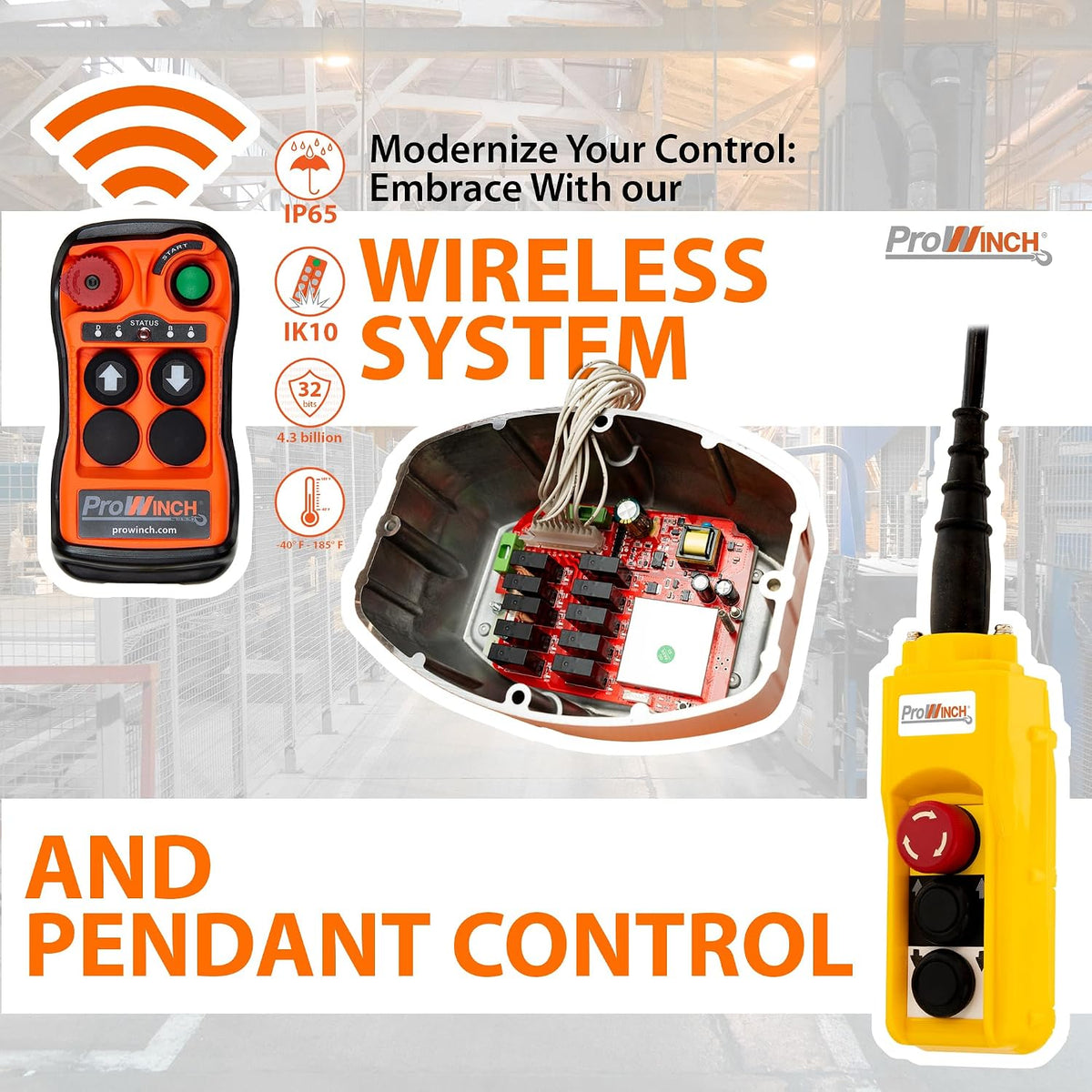

- Wireless & Wired Control: This hoist includes both a wireless remote and a wired pendant control, offering flexible operation. The pendant control features an IP66 rating for superior protection.
- Versatile Applications: Ideal for use in garages, shops, industrial settings, and warehouse tasks. It’s also great for home improvement projects, making it a reliable tool for lifting in various environments. This product comes with a 3-year warranty and support for added peace of mind.
