Electric Chain Hoist Description
The Prowinch 1 ton Electric Chain Hoist allows you to easily lift loads. The powerful motor and single phase electrical connection are perfect for use in a wide variety of situations and environments. The integrated wireless control offers added convenience with the ability to operate the hoist from up to 100 feet away.
Prowinch Electric Chain Hoist
All of our Electric Chain Hoists are created with the goal of offering the best duty performance. Key components such as lifespan factors are constantly tested and improved in order to offer the best product in the market.
Key Components

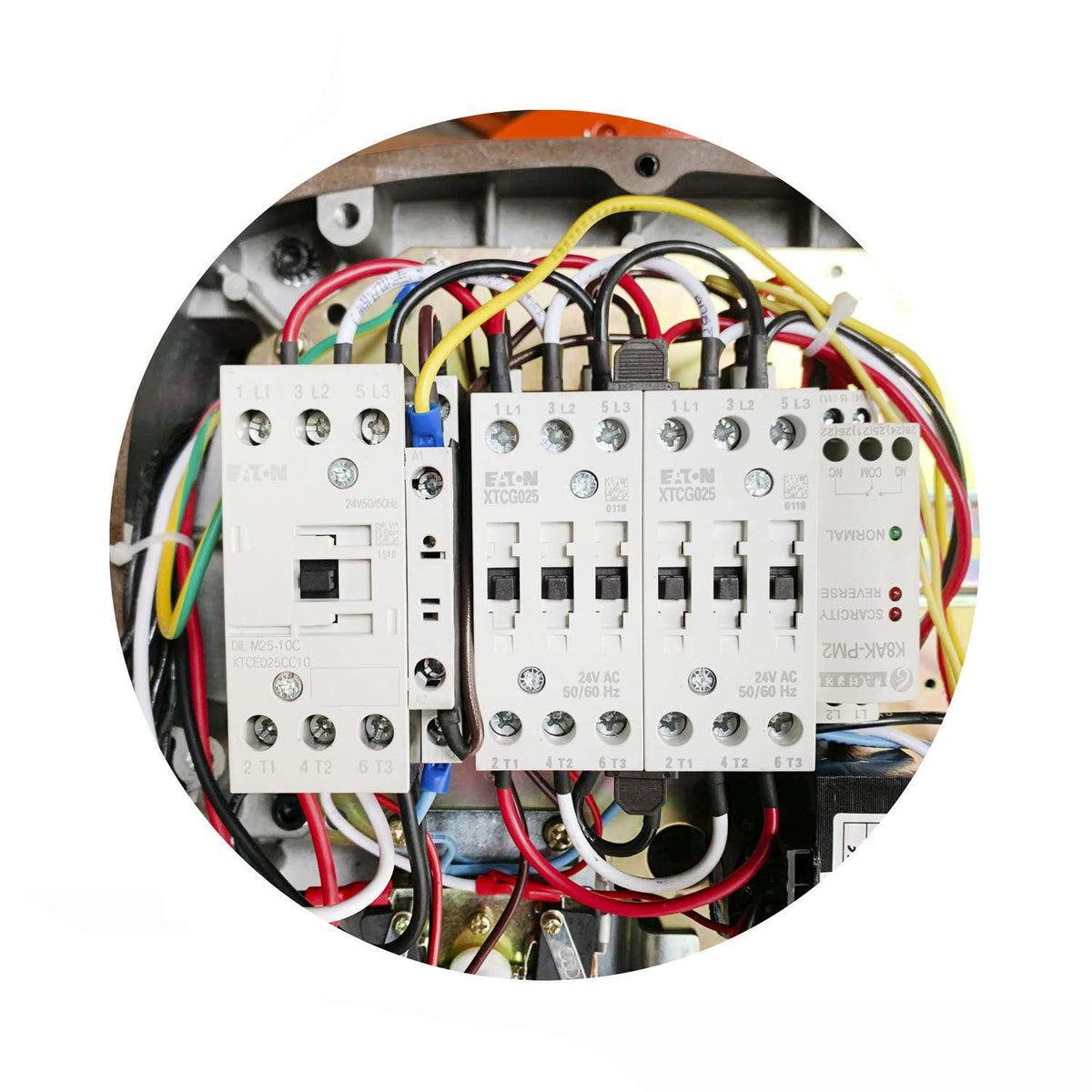

All internal components have been upgraded to meet the highest quality standards. Key electronic components are produced by American or German brands, and we use American-made lubricants to ensure the lifespan of gears and reducers. Final assembly and all tests are performed in the US before shipping to ensure that every unit meets the corresponding standard.
Duty Classification
Duty classification is a key factor when choosing the right unit. These H2 hoists are suitable for general machine shop fabricating, assembly, storage, and warehousing. For uniformly distributed work periods, the hoists have 12.5% max. operational time per hour and can handle up to 75 starts per hour. When being used for infrequent work periods, the hoist can be operated for 15 minutes from a cold start with up to 100 starts per hour. Operational time ratings are calculated at a 65% load factor, as per ASME HST-1-2012.
Control System

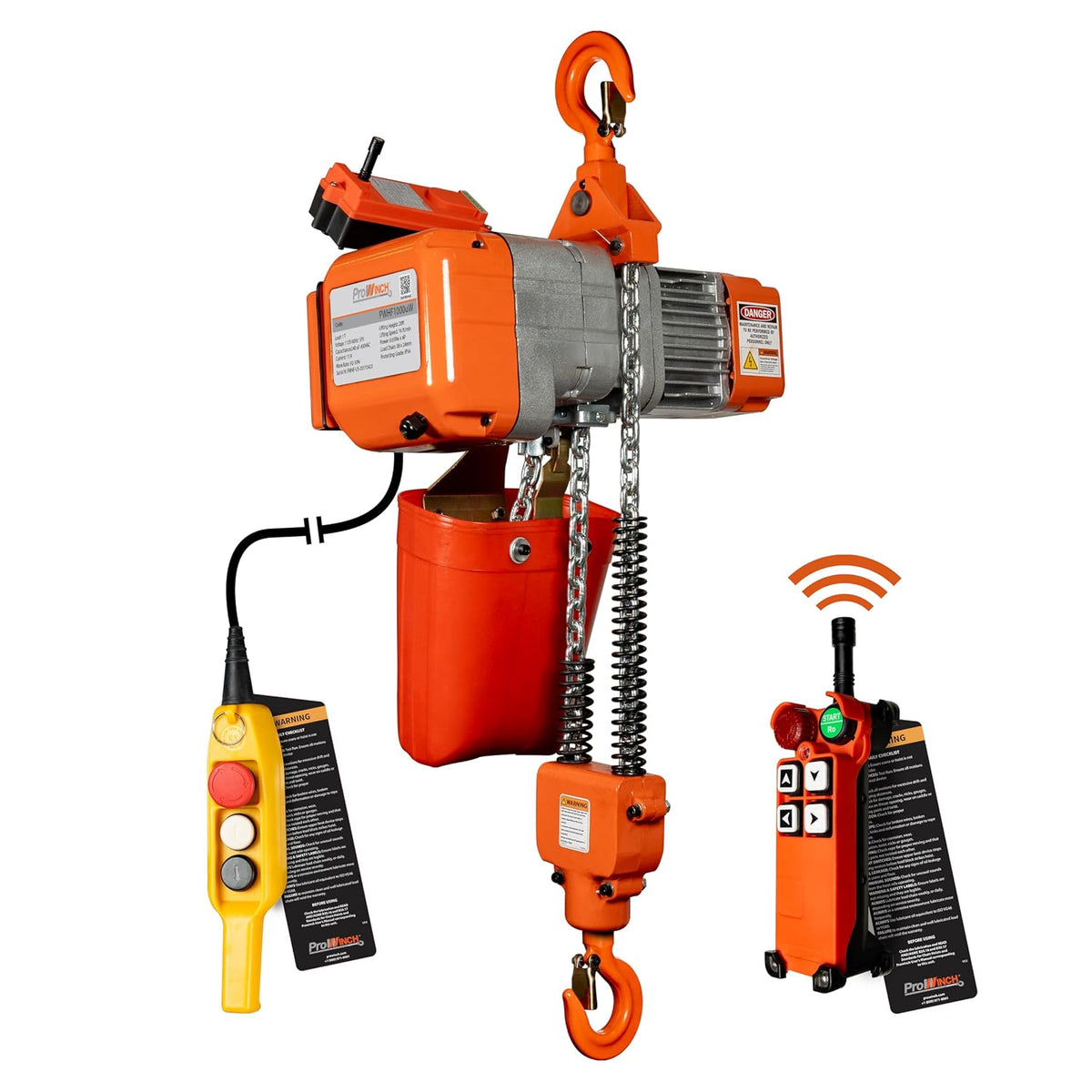

This Electric Chain Hoist comes standard with an industrial wireless remote control and a pendant control. The length of the pendant control is 4 feet less than the lifting height, which allows it to be easily operated from ground-level.
Braking System
The electromagnetic brake system is tested at 125% of the hoist capacity and is designed to automatically engage immediately upon any loss of power.
Prowinch 1 Ton Electric Chain Hoist with Wireless Remote Control System
Single Phase 2000Lbs Load Capacity 20ft Lift Height Hook Mount Chain Hoist G80 Electric Hoist Double Chain
Key features
- Voltage 110V at 60Hz; Single Phase Motor; Capacity 1 ton or 2200 pounds, lifting height 20 ft, Lifting speed 3.9 meters per min or 13 feet per min, Power 0.65 kw, Wired remote control 15 feet long with Up and Down and Emergency Stop
- Different from the standard Hoist equipped with Zinc Plated Steel Wire. This hoist is equipped with a G80 steel chain and a built in chain bag that keeps chain out of the way during operation
- Key safety features such as all-way limit switches, emergency stop, and automatic brake system to prevent over-travel
- The single phase motor provides the power to meet your operational requirements
- Integrated Wireless Controls
- High Precision Gear Set
- Emergency Stop System For Added Protection
- Easily Removable Forged Steel Top Hook with 360 Degree Rotation
- Light Die-Cast Aluminum Housing

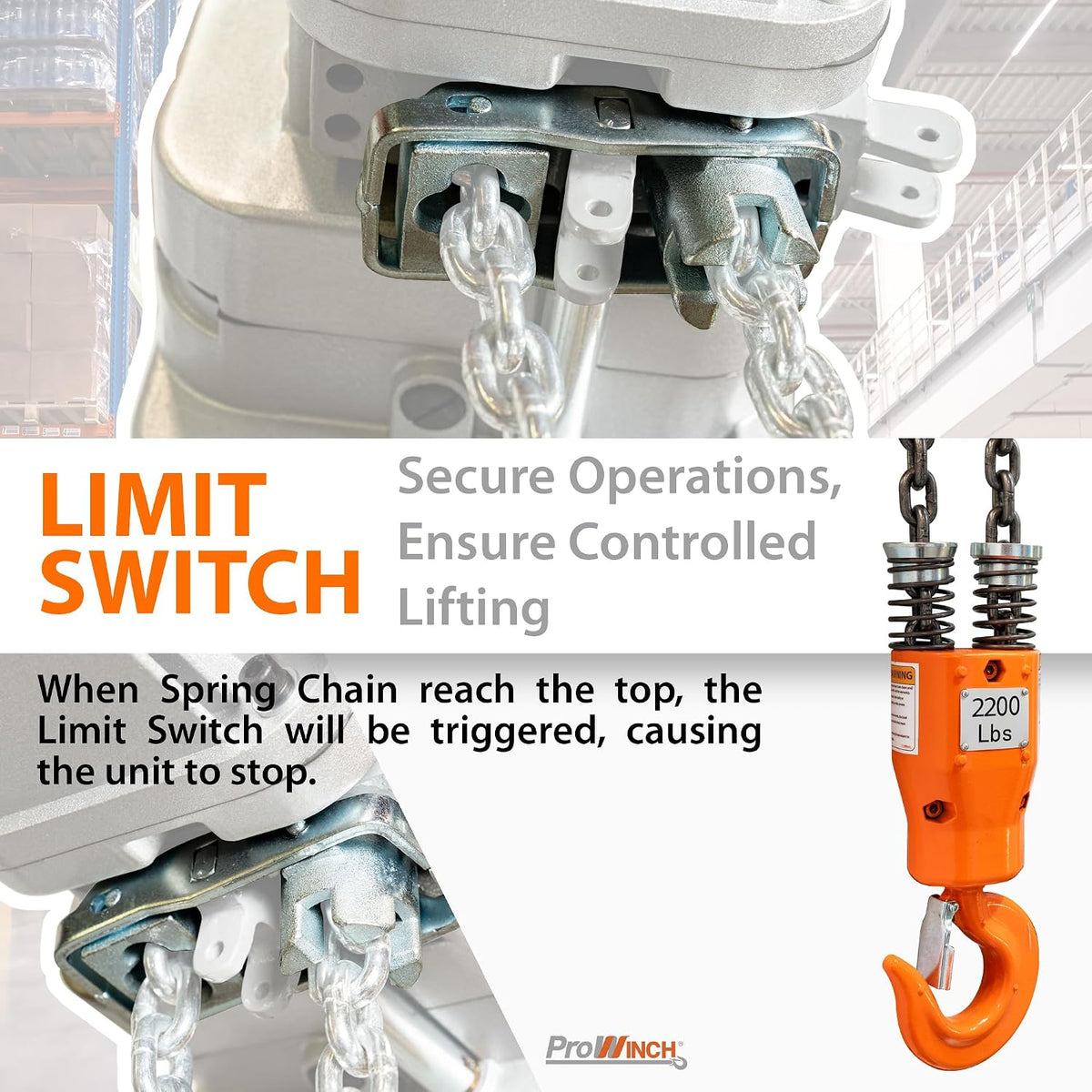

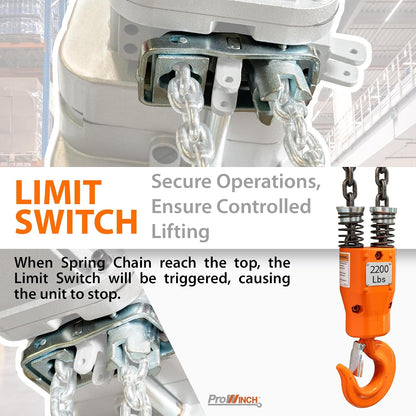

- Upper and Lower Limit Switches to Prevent Over-Travel
Technical Specifications
| Rated Load Capacity | 2200 lb / 1000 kg |
| Speed /min | 8 ft / 2.5 m |
| Voltages | 110~120V 60Hz 1 Phase |
| FCC ID | WTX20X04015023E |
| Motor/Engine Power | 0.65 kW |
| Motor Brake | Yes |
| IEC Motor Protection | IP54 |
| Control Voltage | 24V |
| Chain Type | G80 |
| Chain Falls | 2 |
| Humidity | <85% |
| Noise Level | 70 dB |
| Lifting Height | 20 ft / 6 m |
| Number of Speeds | 1 Speed |
| Duty Class | H2/M3/1Bm/Class B |
| Motor AMP | Motor AMP 8 |
| Insulation Grade | F |
| Control | Wireless F21-4 and Pendant Control |
| Contactor | TECO 12 AMP |
| Chain Size | 8x24 mm |
| Chain Length | 40 ft / 12 m |
| Temperature | -4 ~ 104° F / -20 ~ 40° C |
| Standards | ASME HST-1 , ASME B30.16 , EN14492-2 , EN60204-32 |
| Customer Reviews | — | — | 4.2 out of 5 stars 20 | 5.0 out of 5 stars 1 |
|---|---|---|---|---|
| Price | — no data | — no data | $1,949.51$1,949.51 | — no data |
| Capacity | 1/2 ton -1100 lbs | 1/2 ton -1100 lbs | 1 ton - 2200 lbs | 1 ton - 2200 lbs |
| Speed | 16.4 ft/min | 16.4 ft/min | 8.2 ft/min | 8.2 ft/min |
| Lifting Height | 19.6 ft | 19.6 ft | 19.6 ft | 19.6 ft |
| Chain Length | 19.6 ft | 19.6 ft | 39.2 ft/min | 39.2 ft/min |
| Chain Falls | 1 | 1 | 2 | 2 |
| Wireless Controls | ✓ | ✓ | ✓ | ✓ |
| Trolley | no data | ✓ | no data | ✓ |
About Prowinch
Prowinch was established in 1995 and currently has locations in the United States, Chile, Colombia, Mexico, Costa Rica and El Salvador. We sell winches, electric chain hoists, cranes and related equipment and accessories. Our products are used in many different industries, such as fabrication, assembly, logging and warehousing. We offer hoists and winches that are suitable for hobbies or heavy-duty industrial applications. Our team will work with you to find the perfect unit for any application, and we even offer custom-made solutions.
- LOAD CAPACITY: 1 ton 2200 lbs supports substantial lifting tasks with ease.
- VOLTAGE: 110V suited for operations with standard lower voltage power sources.
- OPERATION SPEED: 1 speed ensures consistent and reliable lifting performance.
- TOP COMPONENTS: Key electronic components are produced by American or German brands, and we use American-made lubricants to ensure the lifespan of gears and reducers. Final assembly and all tests are performed in the US before shipping to ensure that every unit meets the corresponding standard.
