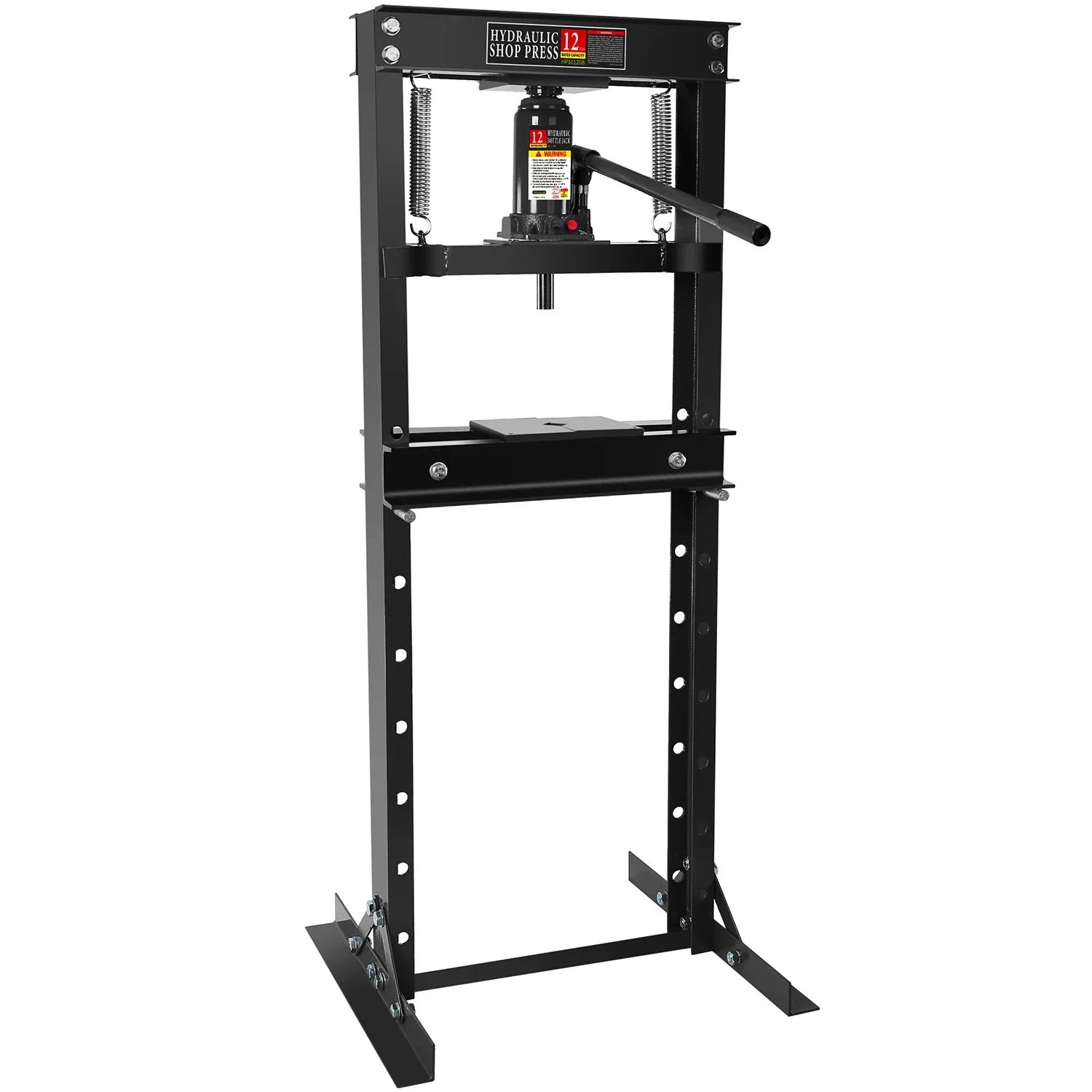

12 Ton Hydraulic Shop Press — H-Frame with Pressure Gauge

12 Ton Hydraulic Shop Press — H-Frame with Pressure Gauge

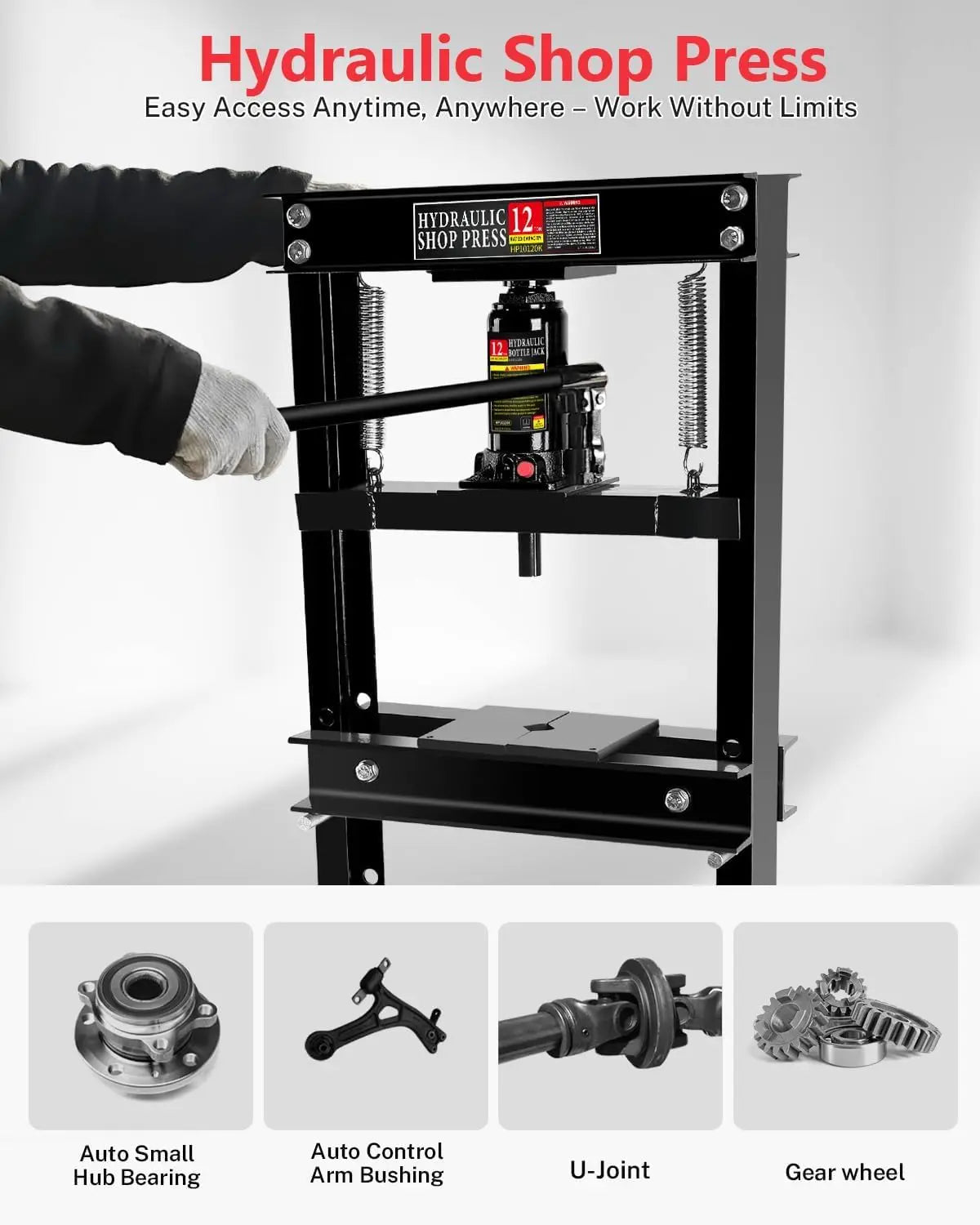

A serious shop press for serious work. The Acekool 12-ton H-frame hydraulic press handles wheel bearing removal, U-joint repair, gear pressing, metal bending, and straightening with industrial-grade force. The adjustable 4-height pin system gives you a 2"–29.5" working range, the auto-relief valve protects against over-pressure, and the carbon steel H-frame stays rock solid under heavy loads. Built for garages and workshops that need repeatable, controlled pressing force without the price tag of a full floor-standing industrial unit.

Key Features

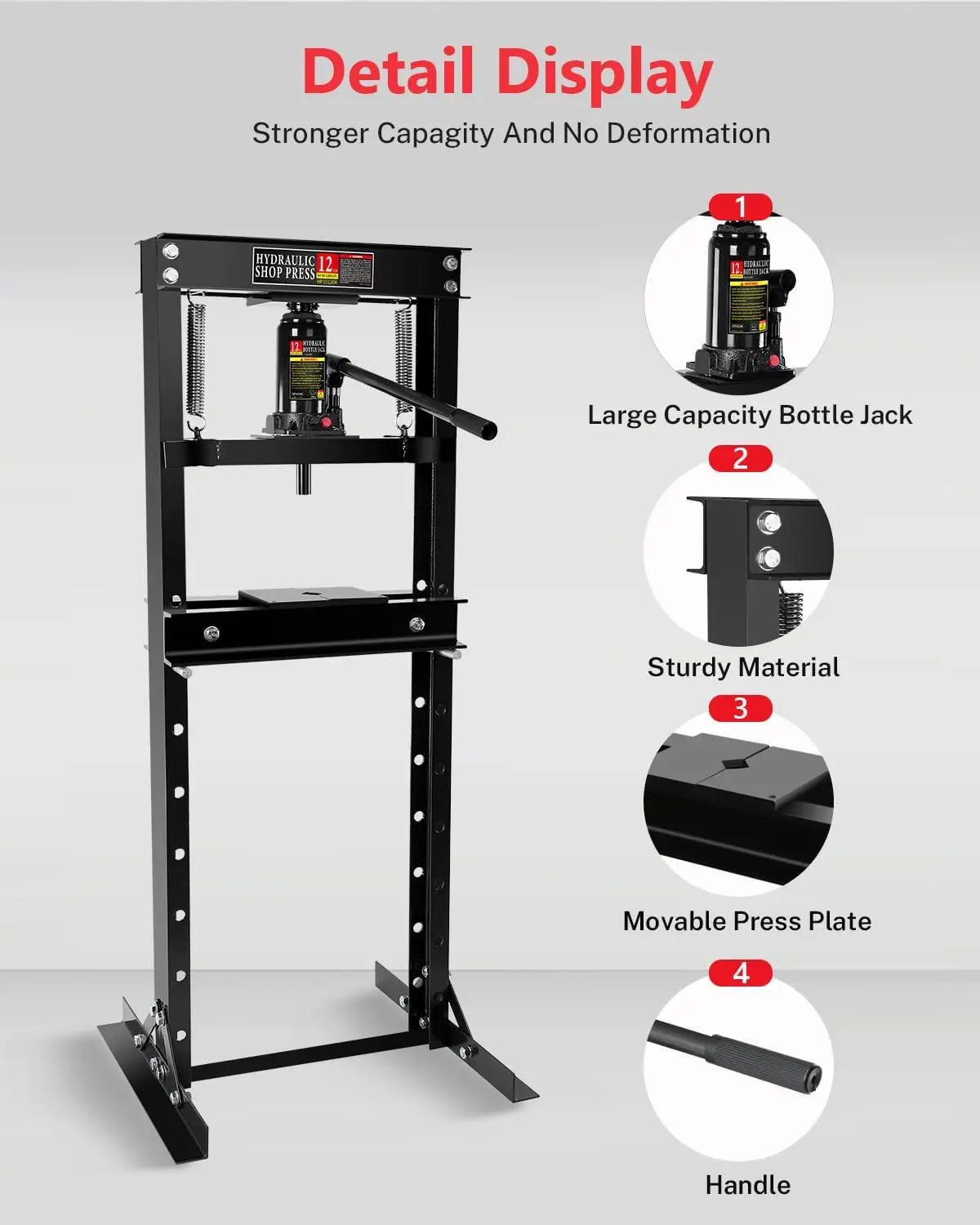

12-Ton Hydraulic Force — Heavy-duty bottle jack delivers reliable force for pressing bearings, bushings, gears, and U-joints. Handles the toughest automotive and metalworking jobs.

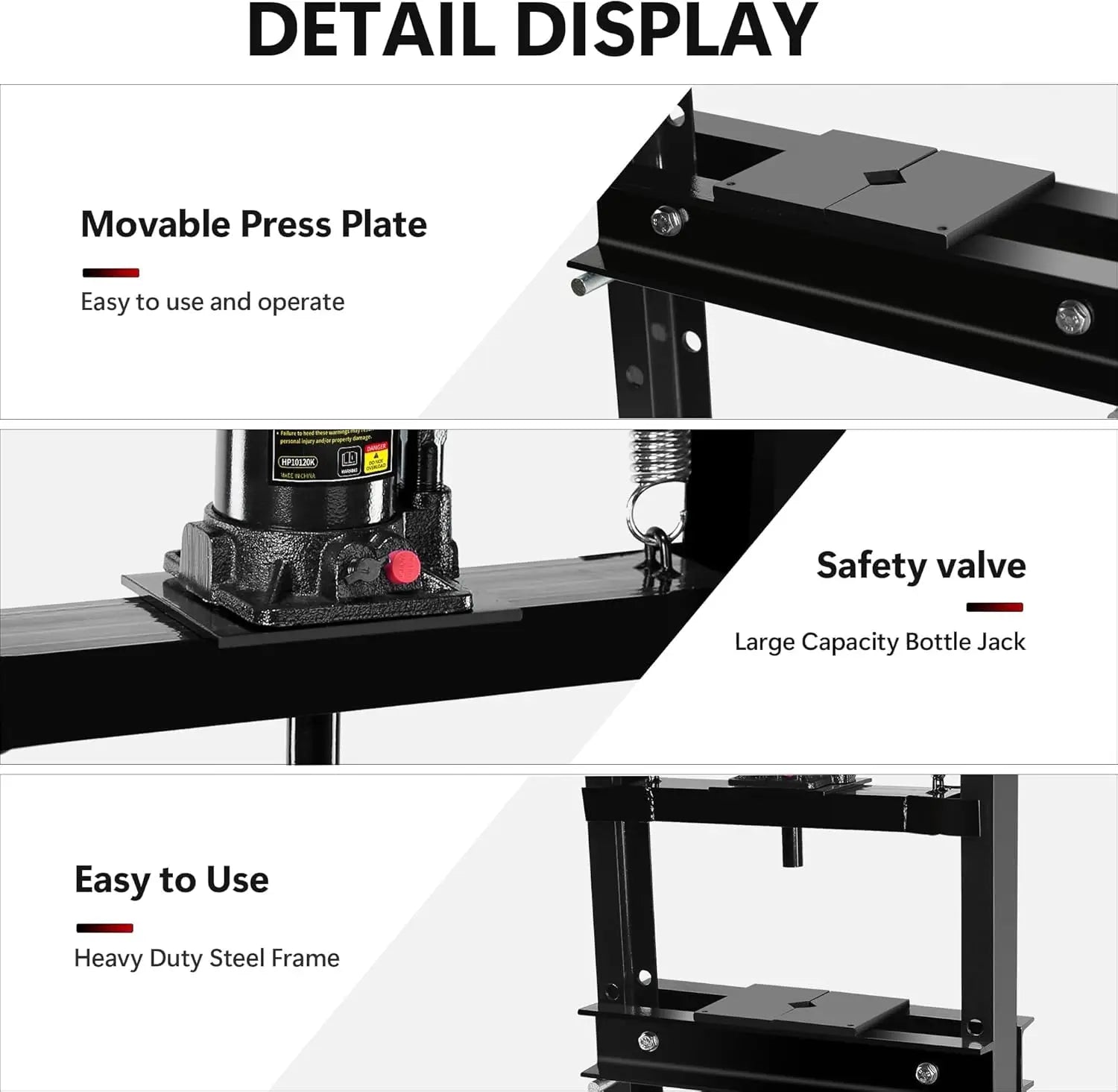

Adjustable 4-Height Pin System — Movable steel plates and 4 pin positions cover a 2"–29.5" working range. Adapts to different part sizes without hassle.

Auto Relief Valve — Automatically activates when pressure exceeds 12 tons, protecting both the press and your workpiece from over-pressurization.

Polished Piston Ram — Resists wear and ensures smooth, controlled retraction after each press cycle. Precision springs maintain consistent return action.

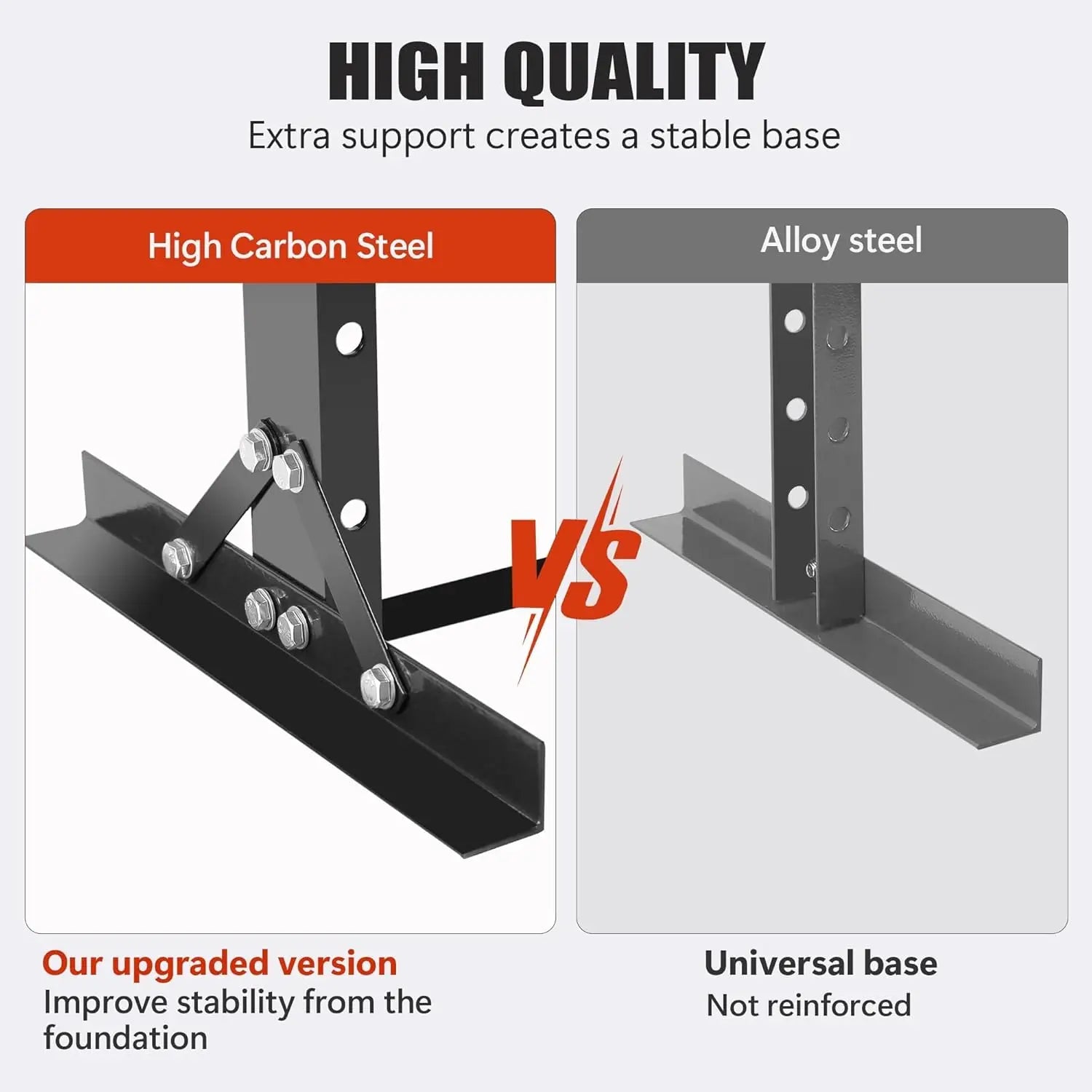

Carbon Steel H-Frame — Absorbs heavy loads without deformation or flex. Compact footprint (23.6" L × 19.7" W) fits smaller shops without sacrificing stability.

Pressure Gauge Included — Monitor applied force in real time for repeatable, precise pressing operations.

Reinforced Steel Work Table — Securely holds bearings, bushings, and small components during operation.

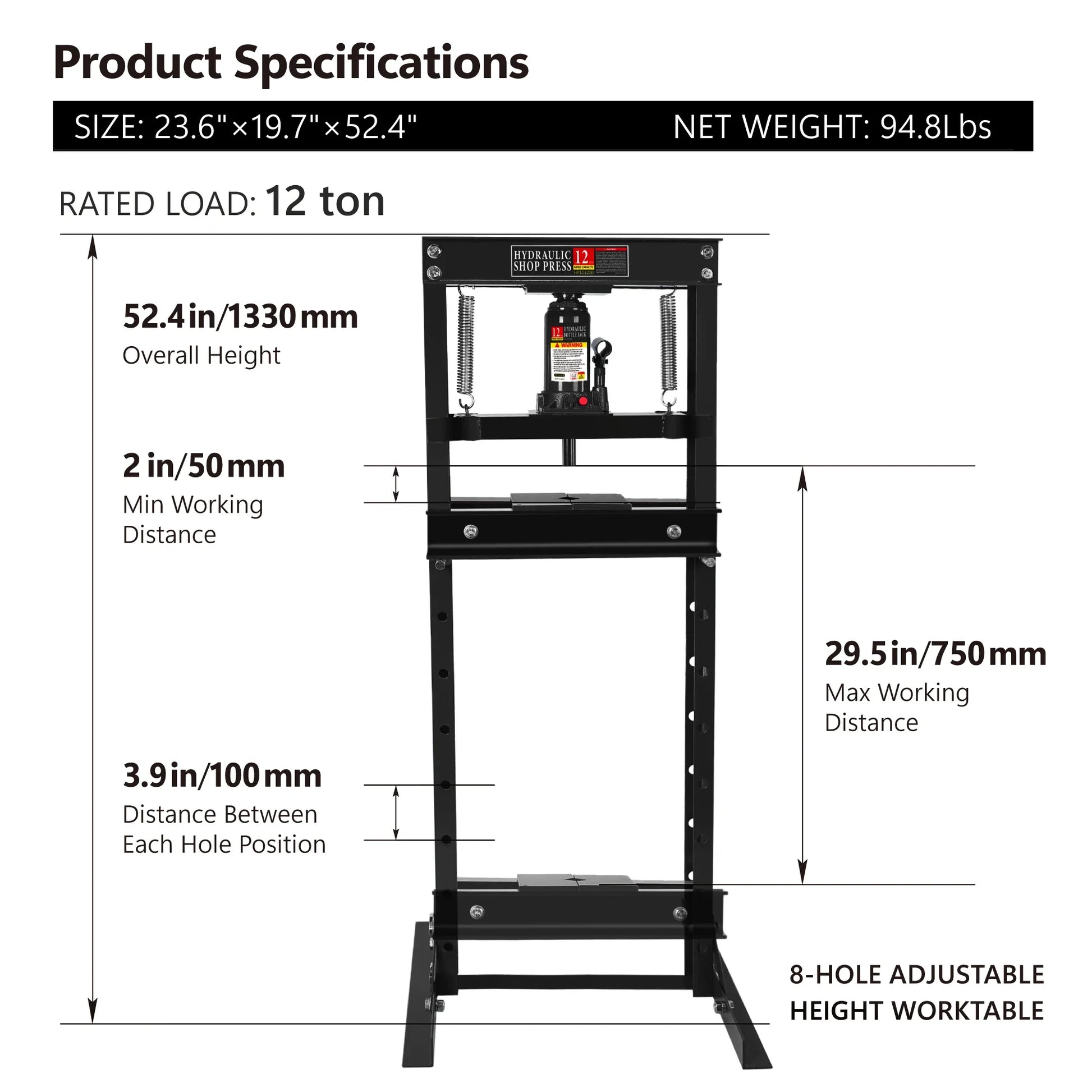

Specifications

Capacity: 12 tons

Frame Style: H-Frame

Working Height Range: 2"–29.5"

Frame Dimensions: 23.6" L × 19.7" W

Weight: 42 kg (92.6 lbs)

Material: Carbon Steel

Country of Origin: China

Brand: Acekool

Vendor: Vivalo
